MC12 - Headlamp

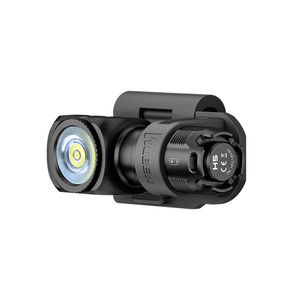

TrustFire MC12 EDC HEADLAMP

TrustFire MC12 Rechargeable LED EDC Headlamp, capable of outputting 1000 Lumens. This headlamp has a magnetic 5V, 2A Fast Charger.

MC12 includes a magnetic USB charging capability.  The headlamp can be charged directly with a power bank, power adapter or on a computer.
Widely use for your everyday carry , keychain, car, hiking, camping, fishing, household, EDC, or general use.

PRODUCT SPECIFICATION

MC12 tiny and Magnetic charging Headlamp feature packed with:

• CREE XP-L HI LED with Ultra-thin optical lens
• MAXVISION BEAM thickness:1.5mm, light transmission efficiency is up to 90%. Other brands use TIR lENS and the lens thickness 10mm, ordinary lens,light transmission efficiency is less than 80%
  Trustifire MC12 output wide beam angle:170 ° which can maximize your vision in the dark.
• Magnetic charging function:Max current could reach 2A. Red means charging, green means fully charged.
• Magentic function in the tailcap.
• Magnetic to any metal surface to get hands free.

FEATURES

• MC12 have five modes: Working light modes and strobe mode.
• With battery indicator: Green- Yellow- Red battery power level indicators.
• Intelligent temperature control setting. Constant current circuit, constant brightness.
• Reverse design, prevents battery reverse installation.
• Two-way pocket clip: Double side pocket clip for very easy carry. Can be attached to pocket, handbag, clothes, backpack or hat brim and so on.
• Flat magnetic tailcap that allows it to be secured to ferrous metal surfaces as a hands-free option.

MODES OF OPERATION

MC12 has 4 brightness levels and a strobe mode.

• High output mode: 1000 lumens;105m beam;runs 65 minutes
• Middle output mode: 200 lumens; 46m beam; runs 160 minutes
• Low output mode: 60 lumens; 25m beam; runs 9 hours
• Moonlight output mode: 3 lumens; 160 hours
• Strobe mode: 1000 lumens; 160 hours

Note: Lockout mode can be activated on the side switch for accidental triggering protection, along with a low-voltage indicator underneath.

MAGNETIC CHARGING

Charging current for USB cable up to 2A, better than other brands which can only charge at 1A
Comes with a magnetic USB charging cable,which makes it easier to acquire the power charger whether at home or outdoors. Convenient charge at any computer or wall-mounted USB power source

POWER LEVEL INDICATOR

Features a battery indicator located on the side switch , once the light is under OFF status, soft press the button to know realtime battery:

• Green (Battery remaining 50%-100 % )
• Yellow (Battery remaining 20%-50%)
• Red (Battery remaining 5%-20%)
• Red flash (Battery remaining 0%-5%)

ATTENTION

• The brightness of this product is extremely powerful. Do not look directly at the illumination to avoid eye damage.
• Intelligent temperature control and low-voltage warning：When the product is working at the highest level, it will accumulate a lot of heat, when the built-in chip detects a high temperature, it will gradually reduce the power to ensure longevity of the headlamp. The headlamp would recovered to normal operating mode when the temperature is within the reasonable operating range.  When the battery almost drained (less than 10%), the headlamp will slowly flash 3 times every minute to remind the user that they should replace the battery.
• If the O ring of the headlamp is damaged after long-term use, please replace the O ring in time to maintain the waterproof performance of the headlamp.
• When the product is not in use, pls pack the product away from damp environment.
• The charing wire cable will flash regularly when it is connected to a power source, but not connected to the device, this is normal.  Do not charge non-rechargeable battery.

SIZE AND WEIGHT

• Length: 2.4 in/65 mm
• Diameter: 0.79 in/ 20.6 mm
• Weight: 1.07oz / 27.2 g (including battery)

BATTERY SUPPORT

• MC12 support 3.7V Li-ion 16340, 3.7V RCR123A, 3V CR123A batteries.  However, to ensure high performance, please choose IMR16340/RCR123A Li-ion + Button Top + Protection PCB rechargeable battery to operate.
• MC12 also support to use primary batteries:3v CR123A Lithium battery in emergency(but please do not charge CR123A).  While other brands only can use 16340 battery. And can not use CR123A or RCR123A batteries.

WATERPROOF

IPX8 waterproof to 2-meter for 30-minutes using without damage, 1-meter impact resistance tested.

PACKAGE INCLUDED

• MC12 flashlight x 1pcs
• IMR16340 650mAh battery x 1pcs
• Magnetic rechargeable cable x 1pcs
• Headlight belt x 1pcs
• Headlight mount x 1pcs
• Pocket clip x 1pcs
• Key ring x 1pcs
• Lanyard rope x 1pcs
• Spare O-rings x 1pcs
• User manual x 1pcs

TECHNICAL SPECIFICATIONS

BRIGHTNESS OUTPUTS
